RTX 5090 with four 8-Pin-Steckern: Modder distributes 600W across classic PCIe ports
The 12V-2×6 connector on GeForce RTX 5090 remains a prime target for hardware modders. A recent modification goes much further than adding sensors or better cables: the 16-pin connector is completely bypassed, distributing power across four classic PCIe 8-Pin ports. The goal is not higher performance, but reducing the current density at each individual contact point.
More contacts instead of trust in a single connector
In its reference state, an RTX 5090 can draw up to 575 W. With custom BIOS or partner cards, this can be significantly higher. At these levels, the 12V-2×6 connector handles massive currents. The core issue isn't just the total wattage, but the uneven distribution of current. If a single contact develops increased contact resistance, it can heat up significantly more than the others, potentially triggering a local thermal chain reaction.

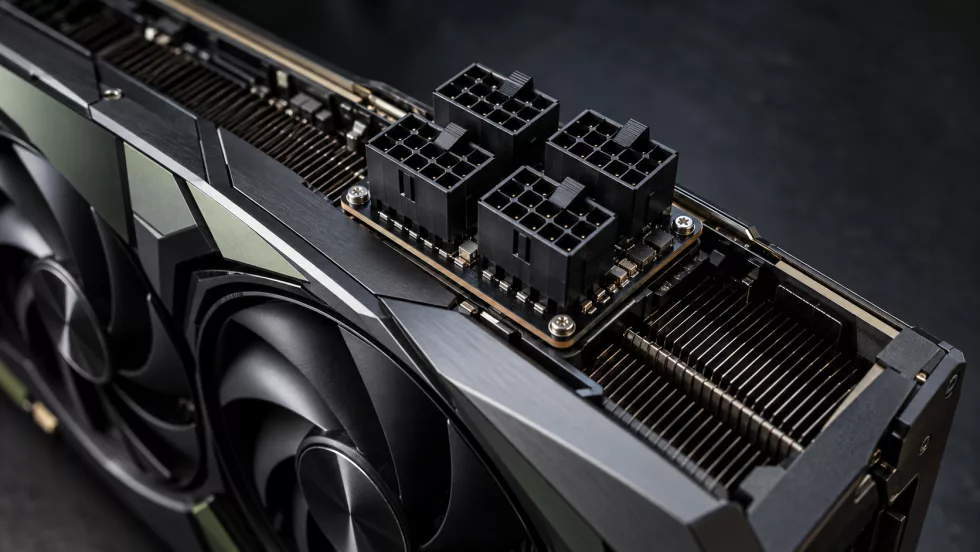

The mod by DallasGrave utilizes four classic PCIe 8-Pin sockets. According to PCI-SIG specifications, each connector is rated for 150 W, totaling a nominal 600 W. However, the real advantage is the distribution: instead of stressing a single compact connector with six 12-volt lines, the four 8-pin connectors spread the current across a much larger number of physical contacts and cables via a custom distribution PCB. This board also handles the necessary sense signals so the GPU can correctly identify the available power budget.
The modder reported that the construction was tested above 600 W, and with further adjustments, it was capable of reaching approximately 800 W. It is important to note that this does not make these classic connectors officially rated for 200 W each; such tests simply demonstrate the headroom available under specific conditions. This approach is not the first of its kind, as previous mods have used two or even three 8-pin connectors to handle extreme power levels.
Technical trade-offs
While electrically sound, this modification is a step backward in terms of usability. Four 8-pin connectors are bulky and cumbersome, making them unattractive for modern, compact GPU designs. Most modern power supplies are increasingly optimized for the 12V-2×6 standard. Nevertheless, the mod highlights a critical technical reality: the safety of a high-performance GPU depends not on the total wattage listed on a PSU, but on how cleanly several hundred watts are delivered from the power supply to the voltage regulators.
